Watch the progress of this 2008 Bailey 750 as it is assembled in the Haskell Motorsports shop. We will highlight the features of the Bailey design as well as frequent updates to completion.
Case saver, fuel pump mount, and radiator can be viewed on the parts page.

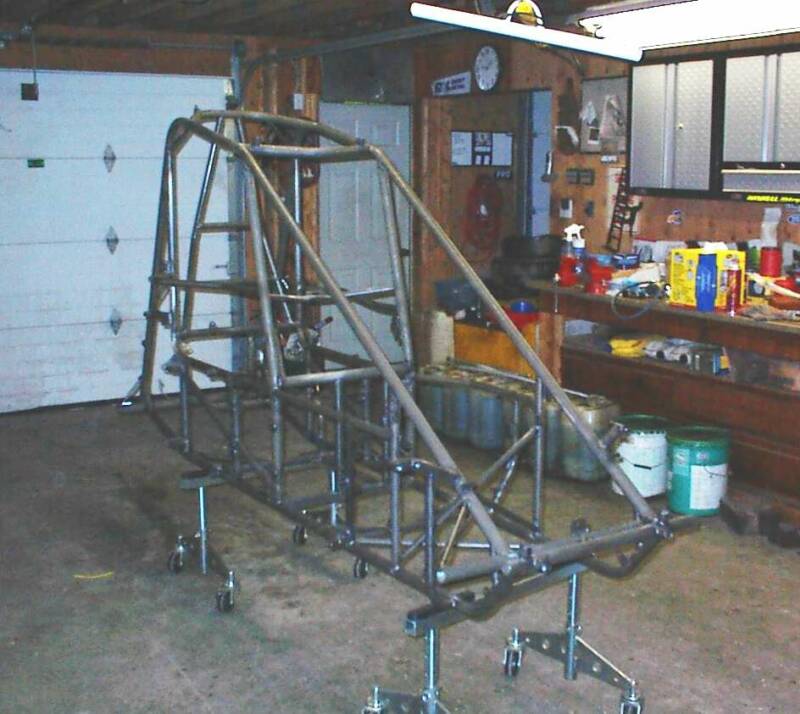

New Bailey chassis before

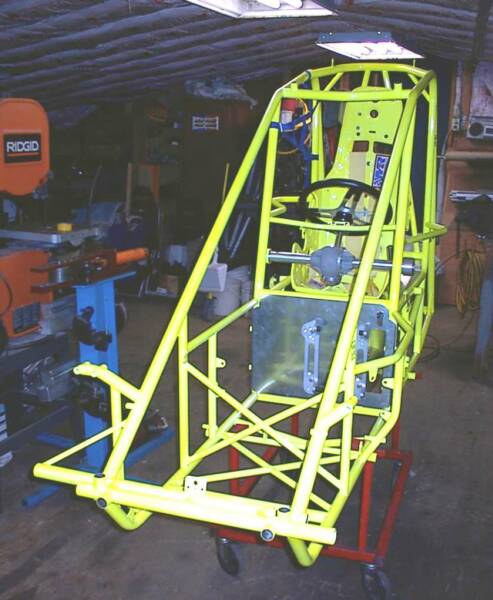

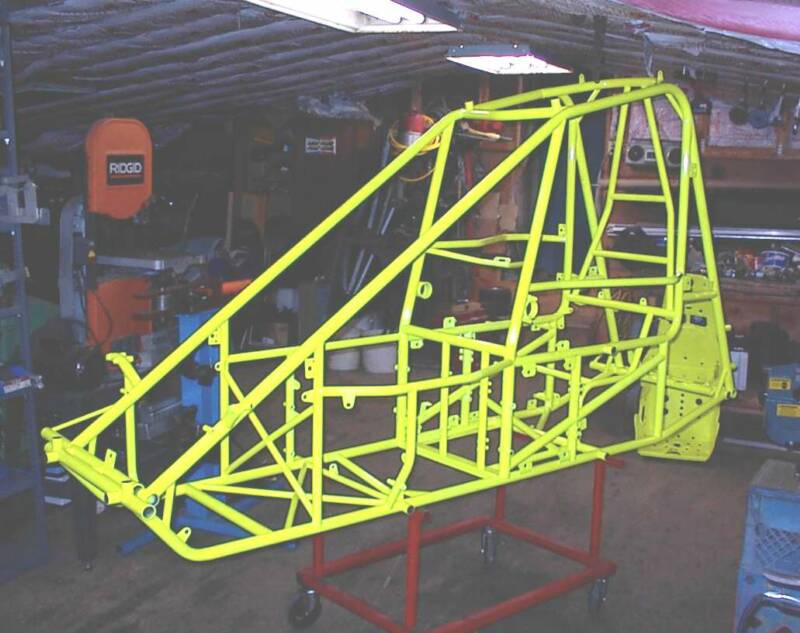

and after powder coat !
Sub Assembly Area

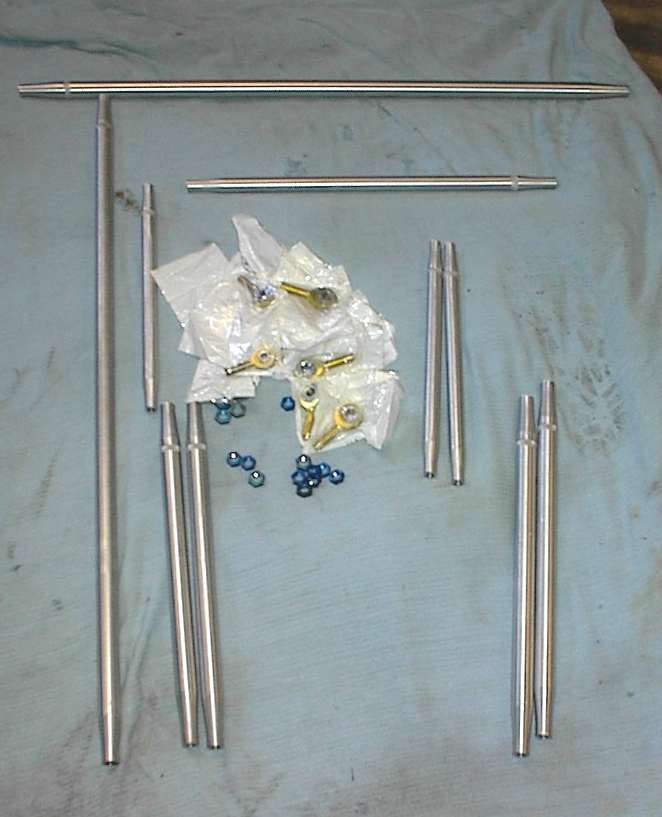

Radius Rod Kit

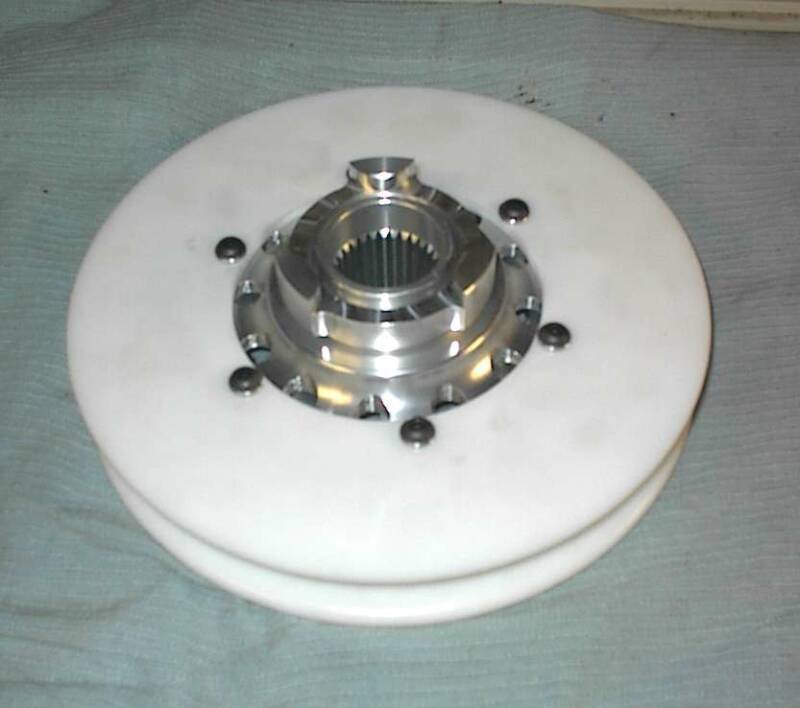

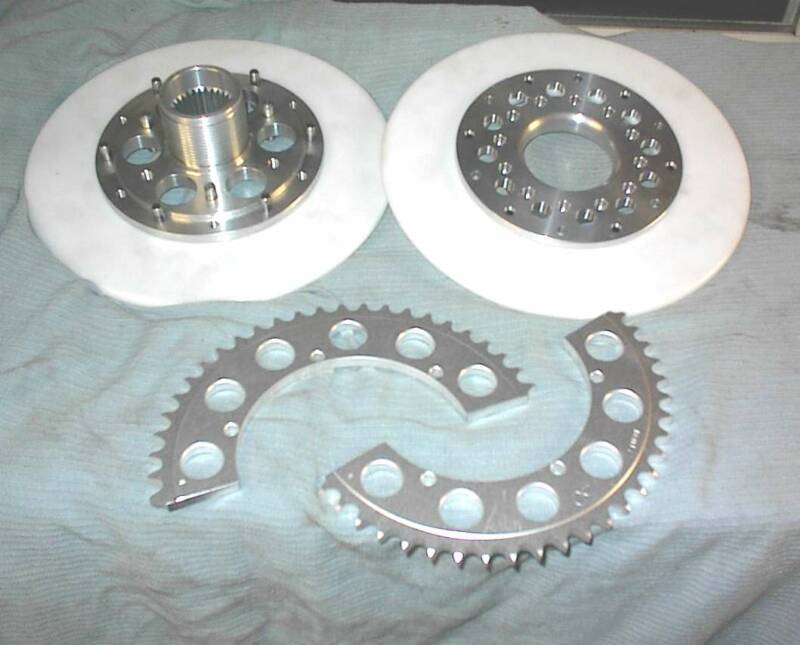

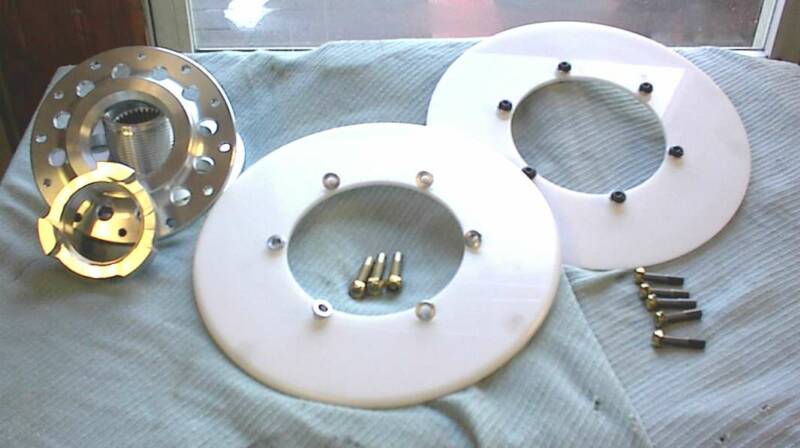

Quick Change Sprocket Hub Assembly

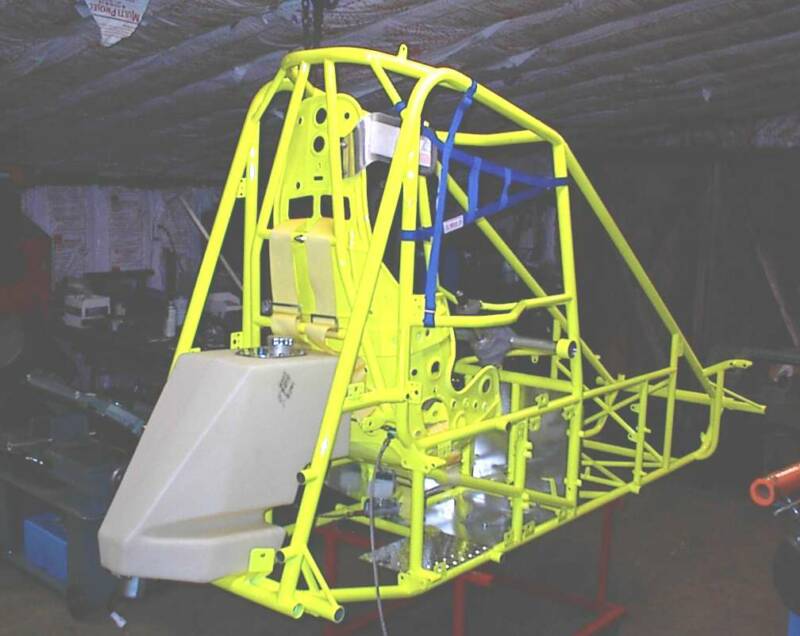

Chassis with floor, pedals, firewall, fuel tank, motor mounts, seat and belts installed.

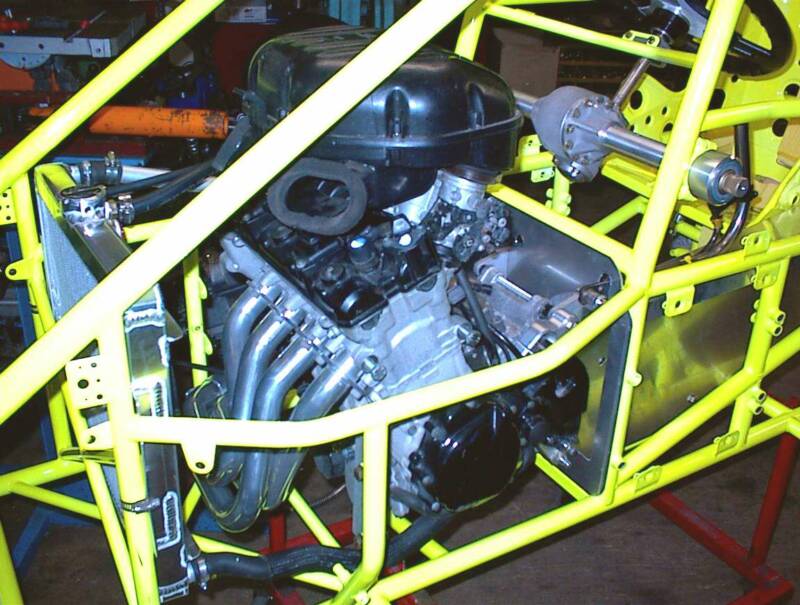

Engine installed

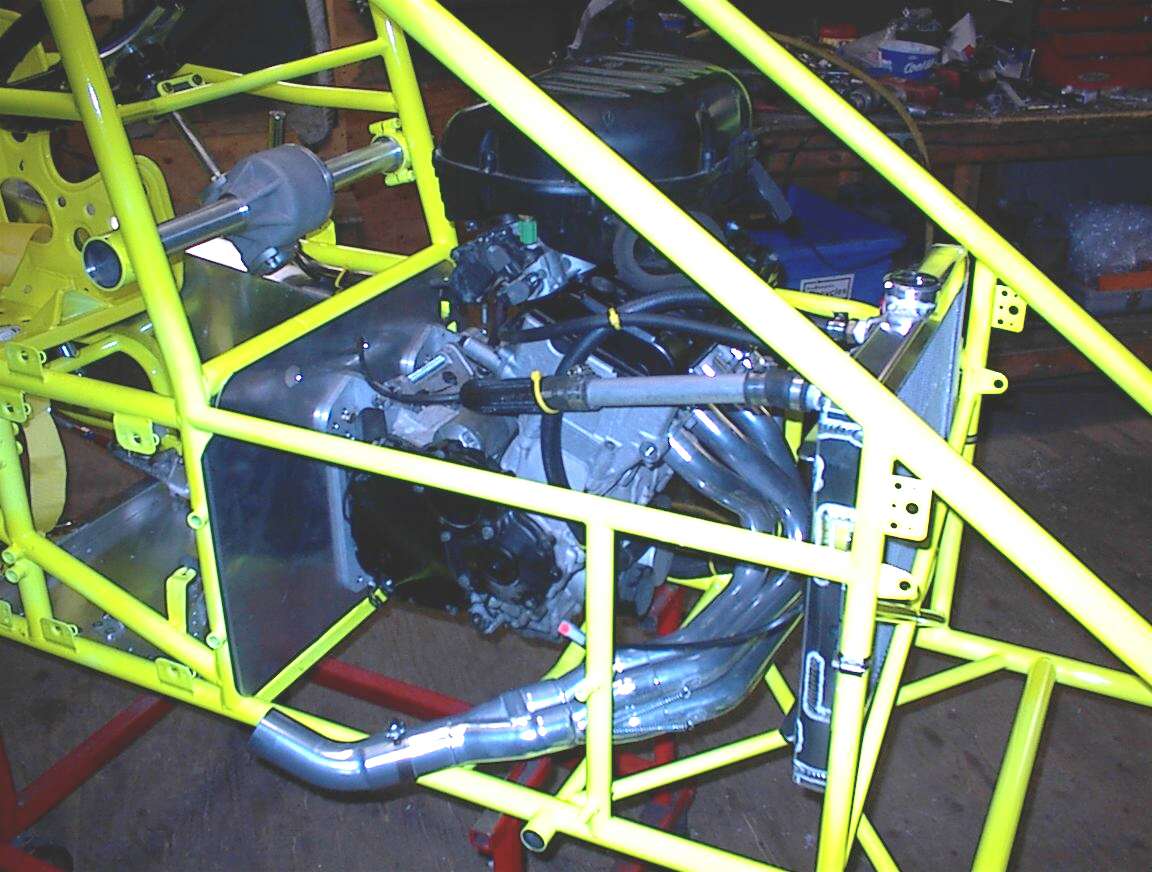

Love that coated S&S header
Radiator waiting for a screen

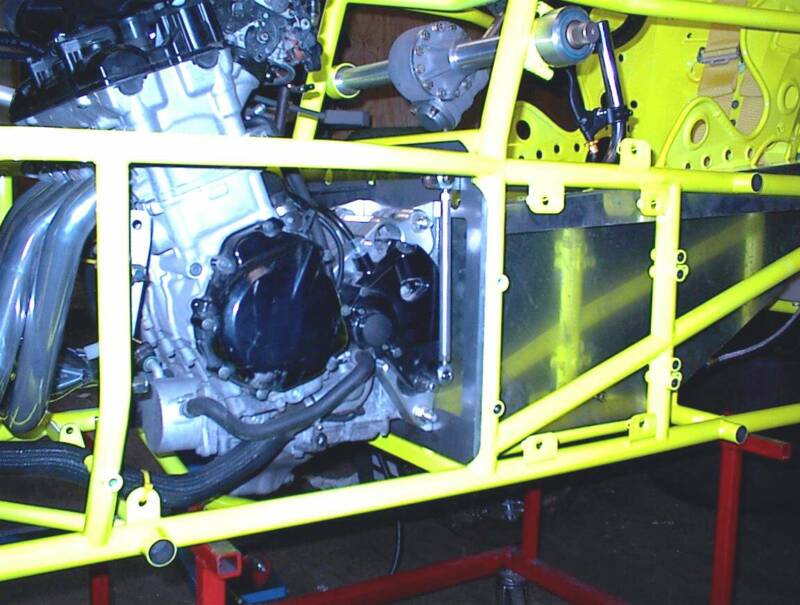

Case saver installed behind clutch cover

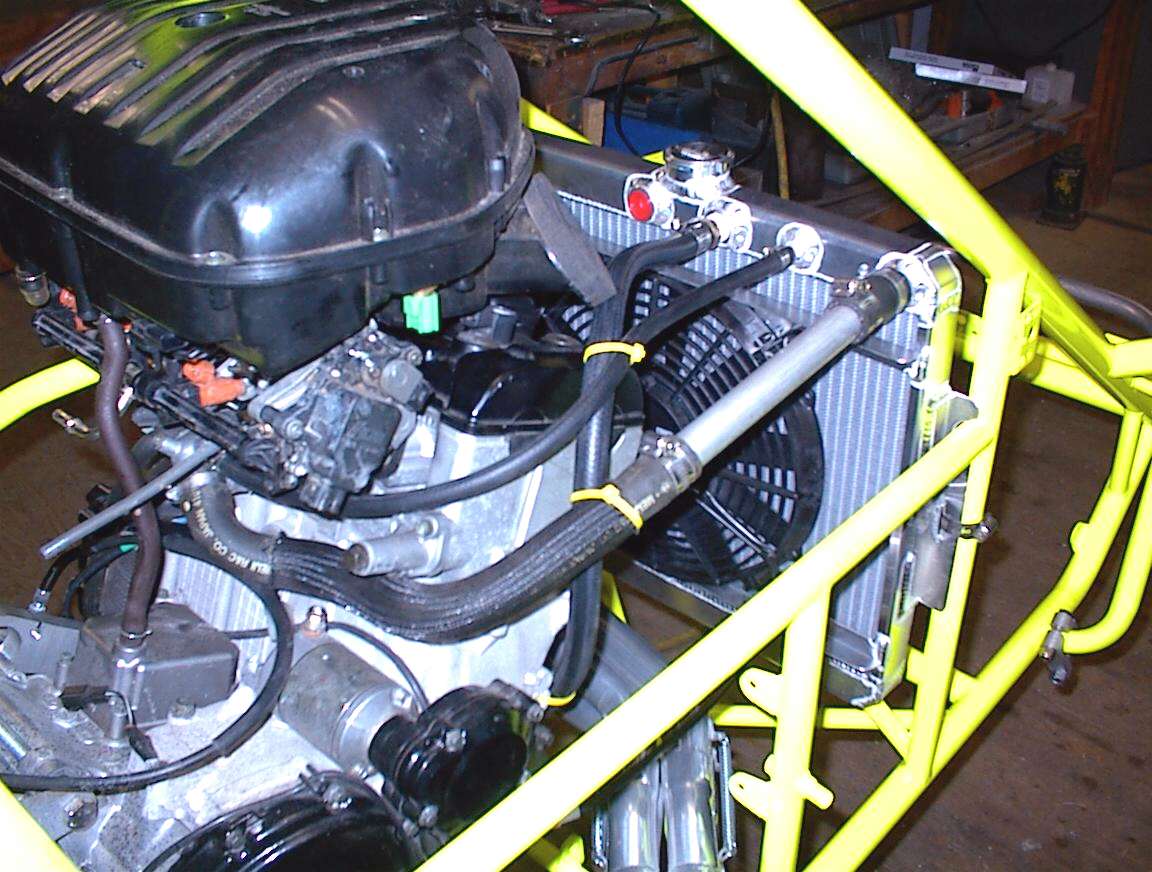

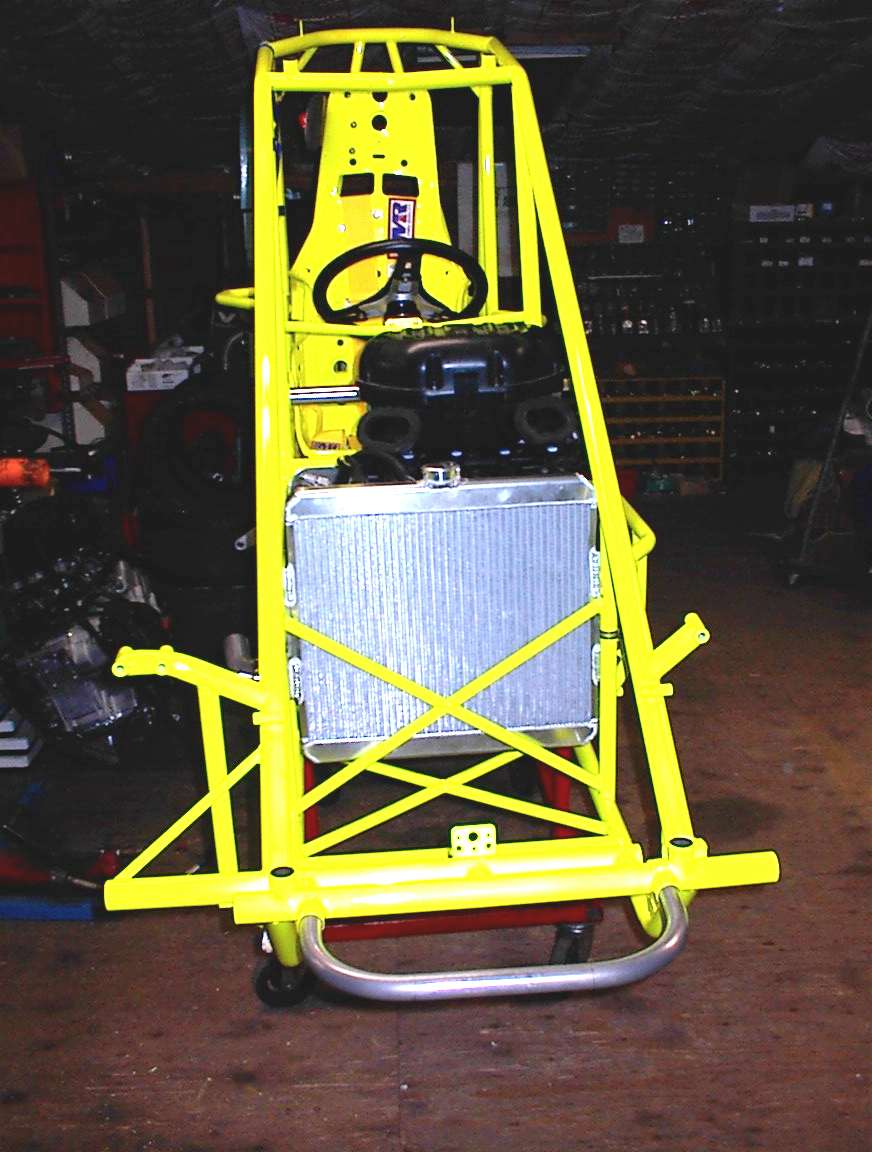

Clean install of cooling system with radiator & fan.

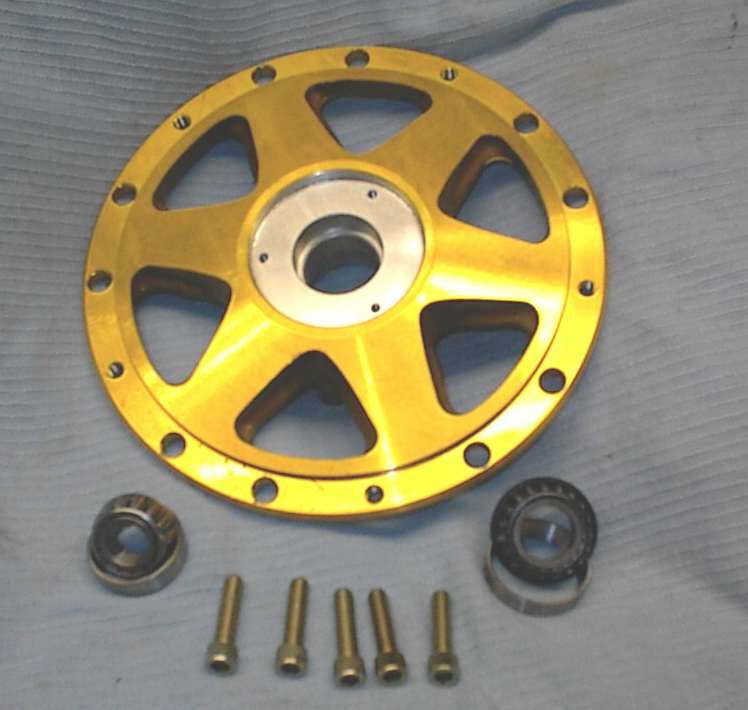

Weld wheel center, bearings & wheel studs

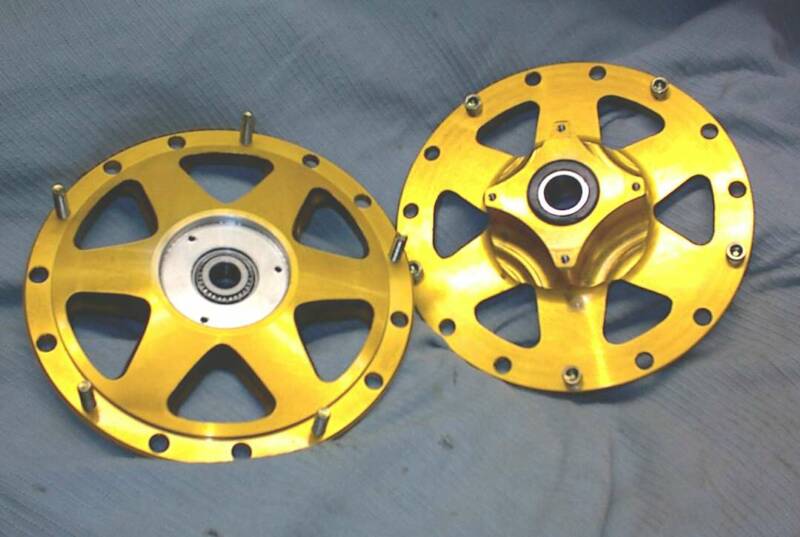

Completed Wheel centers, ready to install

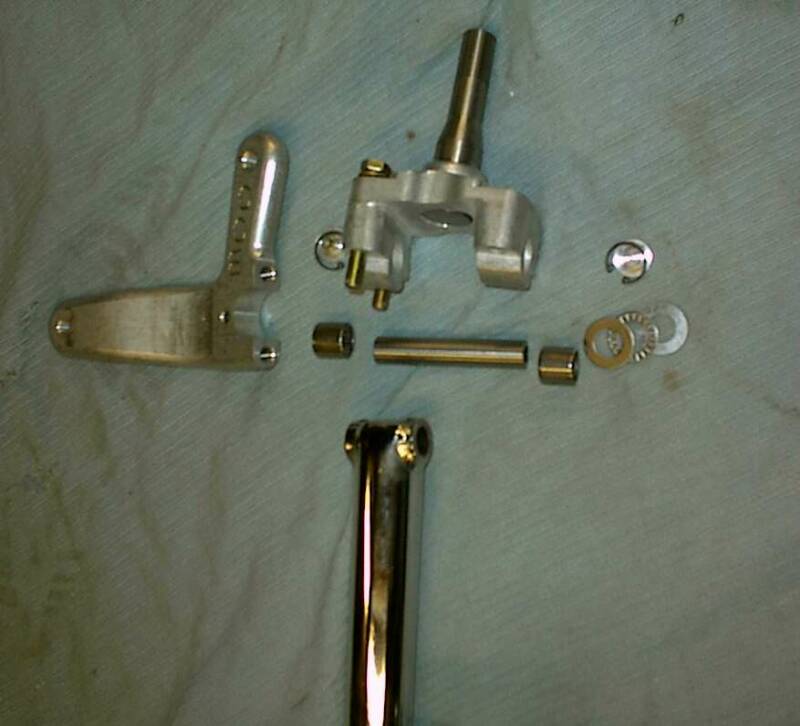

Left side spindle details, king pin, needle bearings, upper & lower caps with lock rings, steering arm, and thrust bearing assembly.

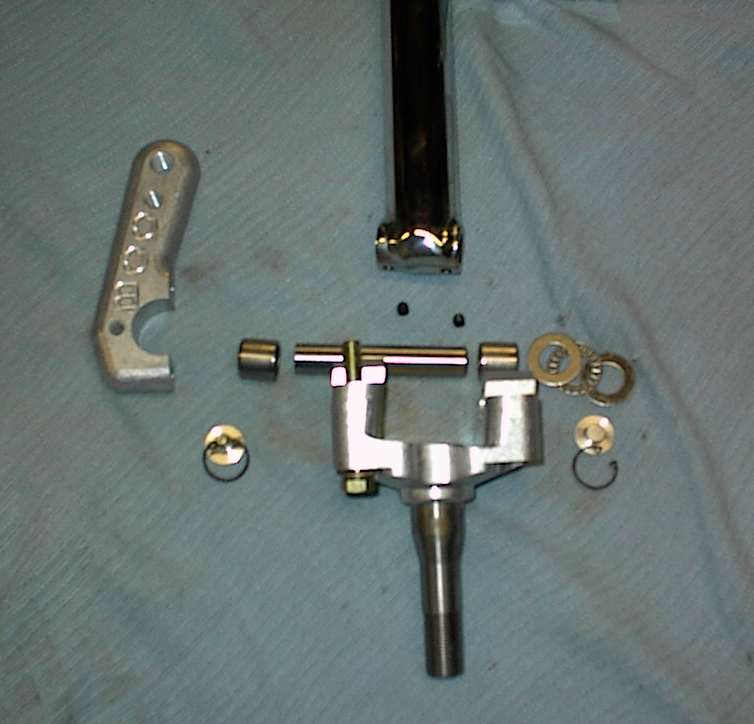

Right side spindle, same as left with axle set screws removed from axle end.

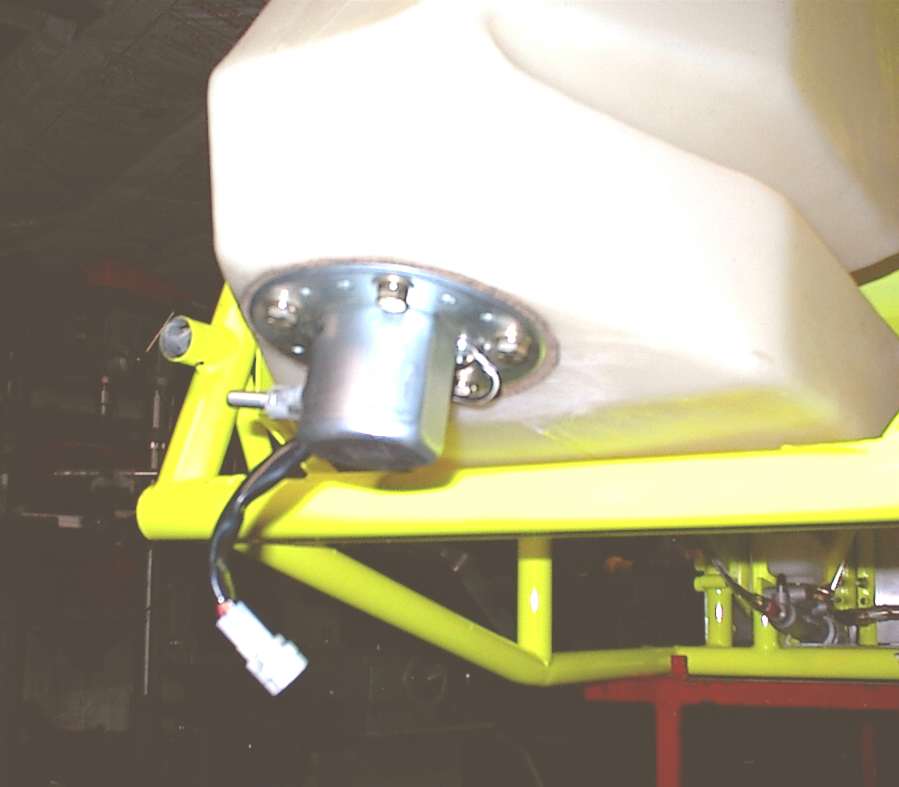

Fuel pump installed with Haskell tank adapter

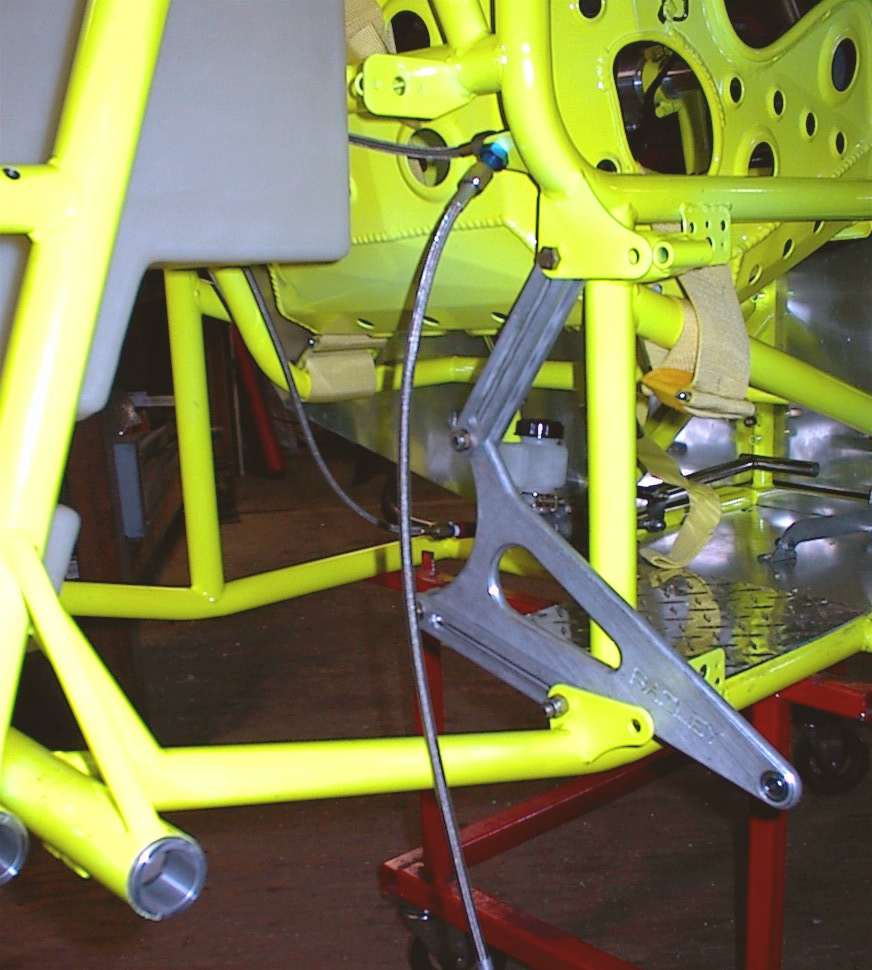

Ladder and brake system installed

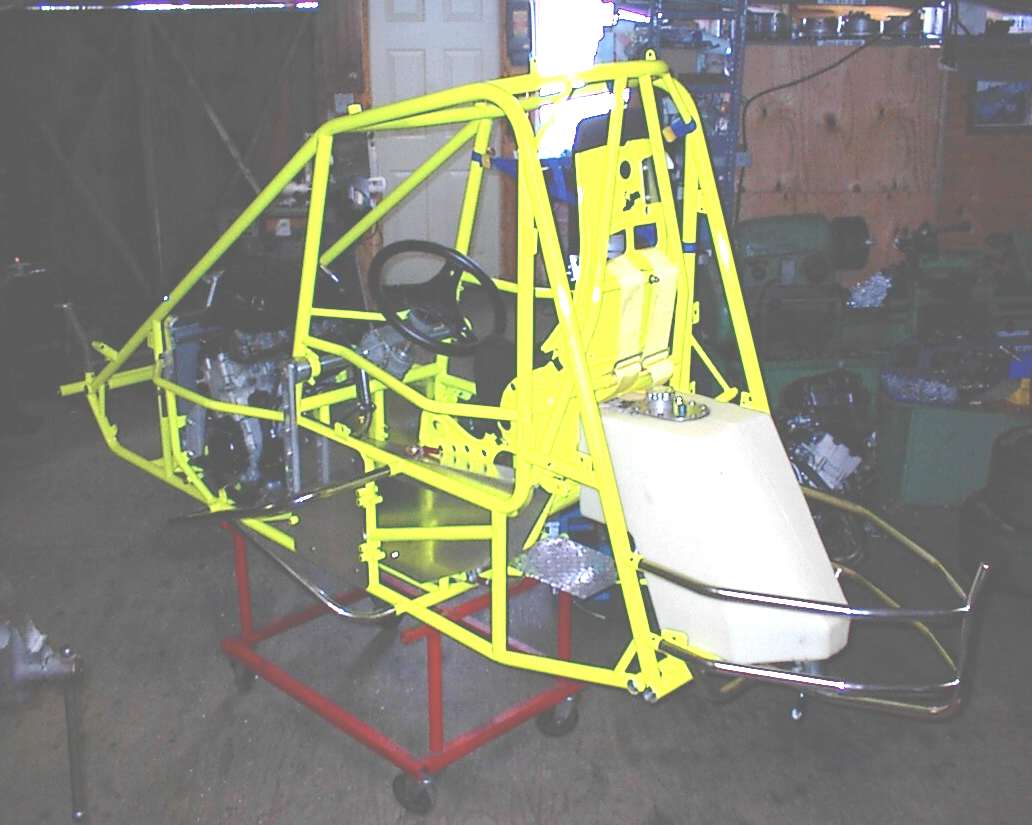

Bumpers & nerf bars installed before axles & body.

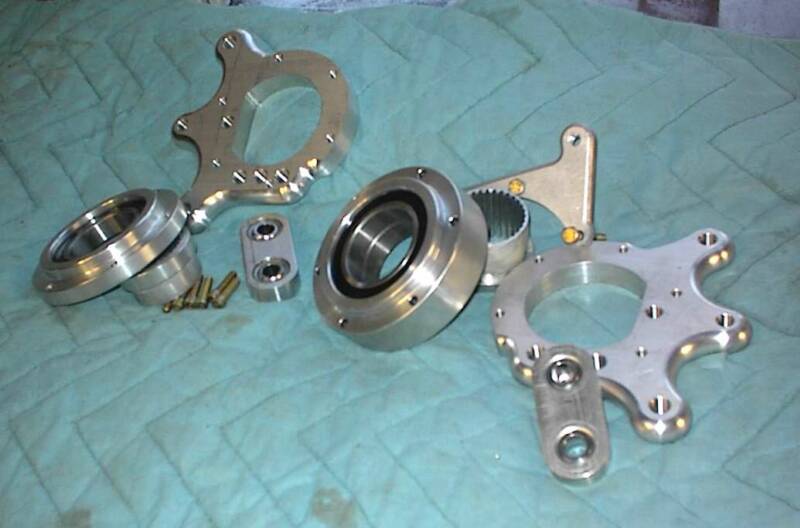

Bailey rear bird cages.
Note the right side has 2 bearings installed.
Other parts shown are the torsion arm links, caliper bracket, and splined axle sleeve.

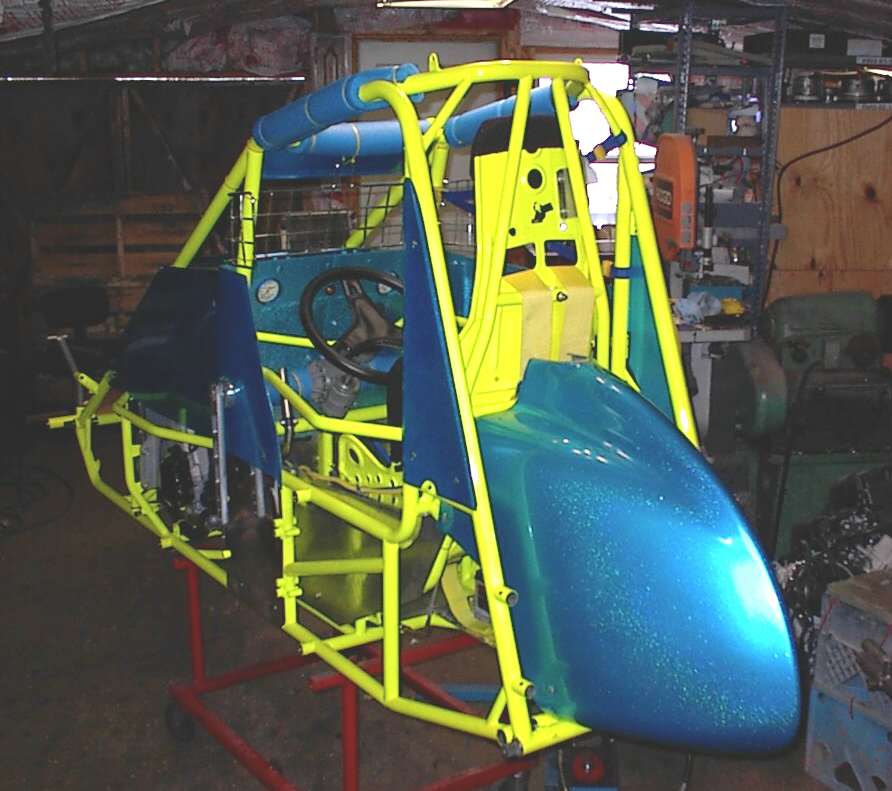

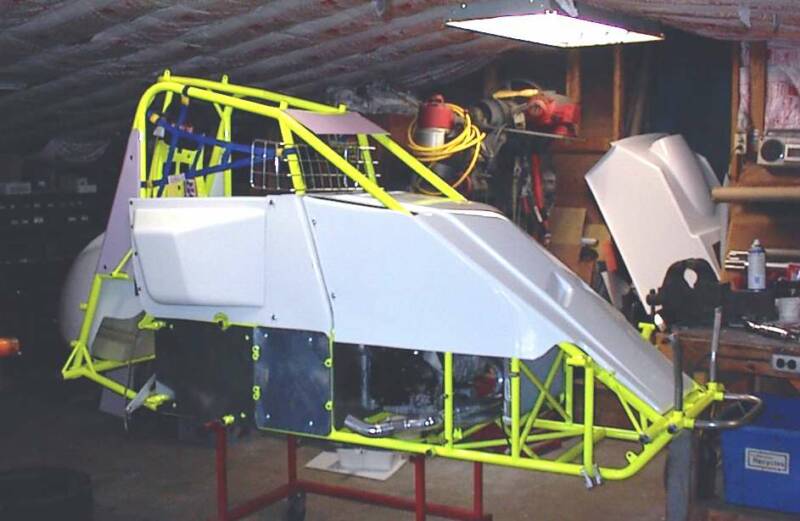

Body fitted and ready for paint

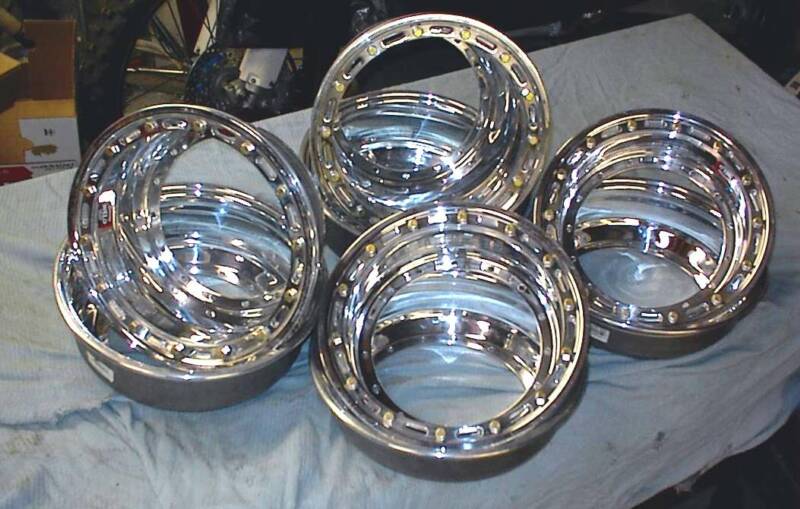

4 new Weld wheels ready for assembly

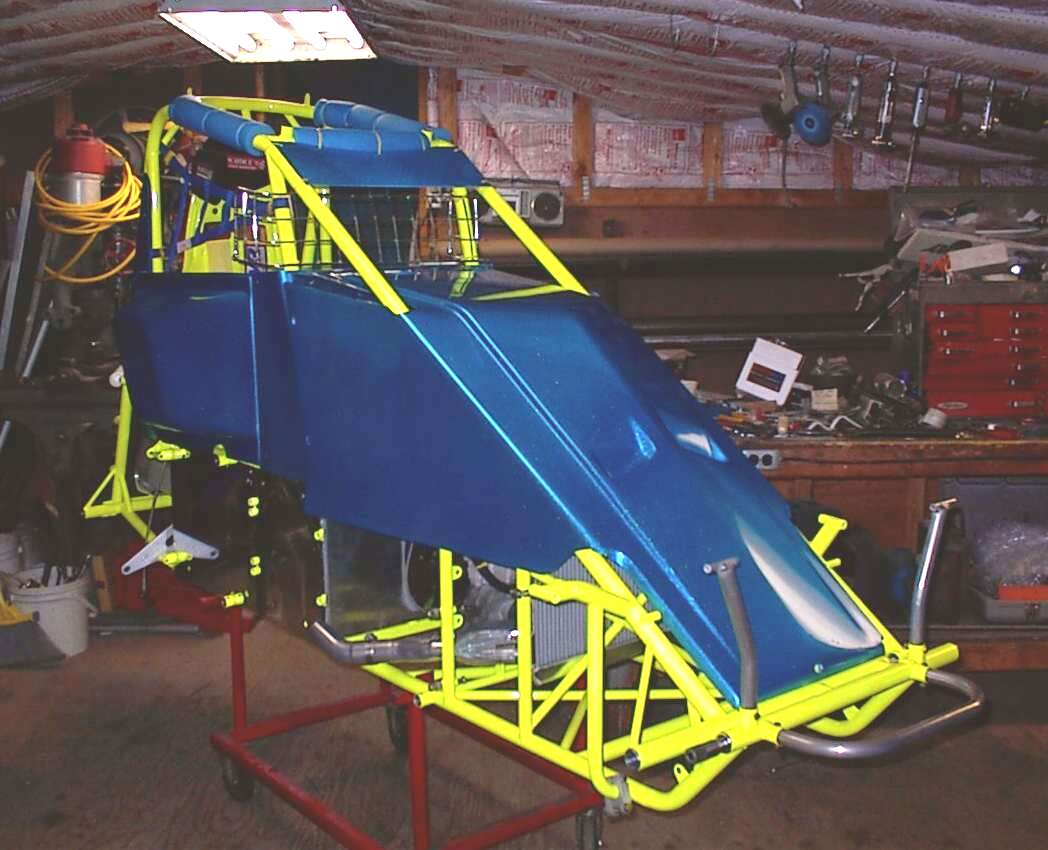

Body with new metallic blue paint
Next, the graphics will be applied!
Watch this spot  for more appearance dates!

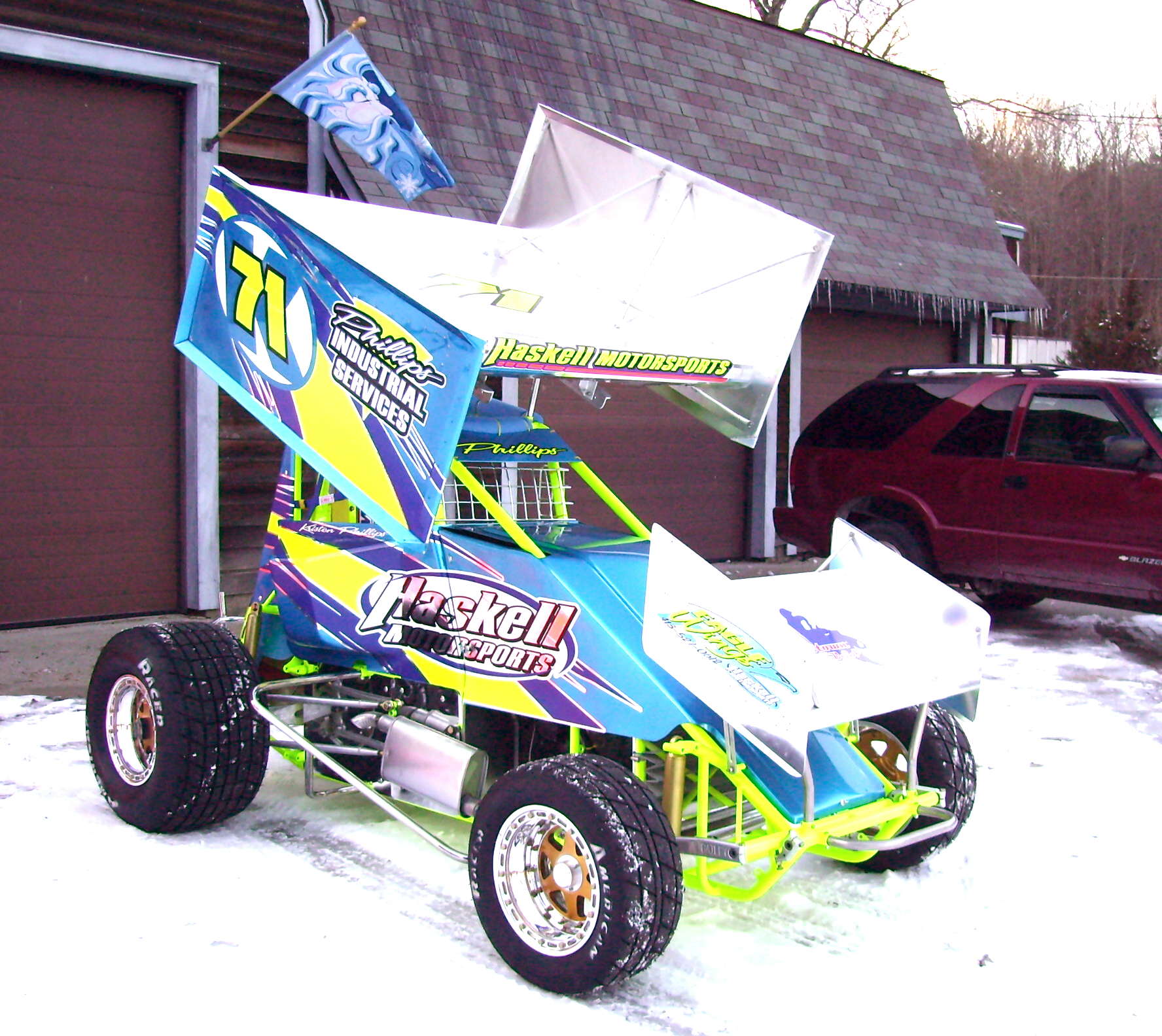

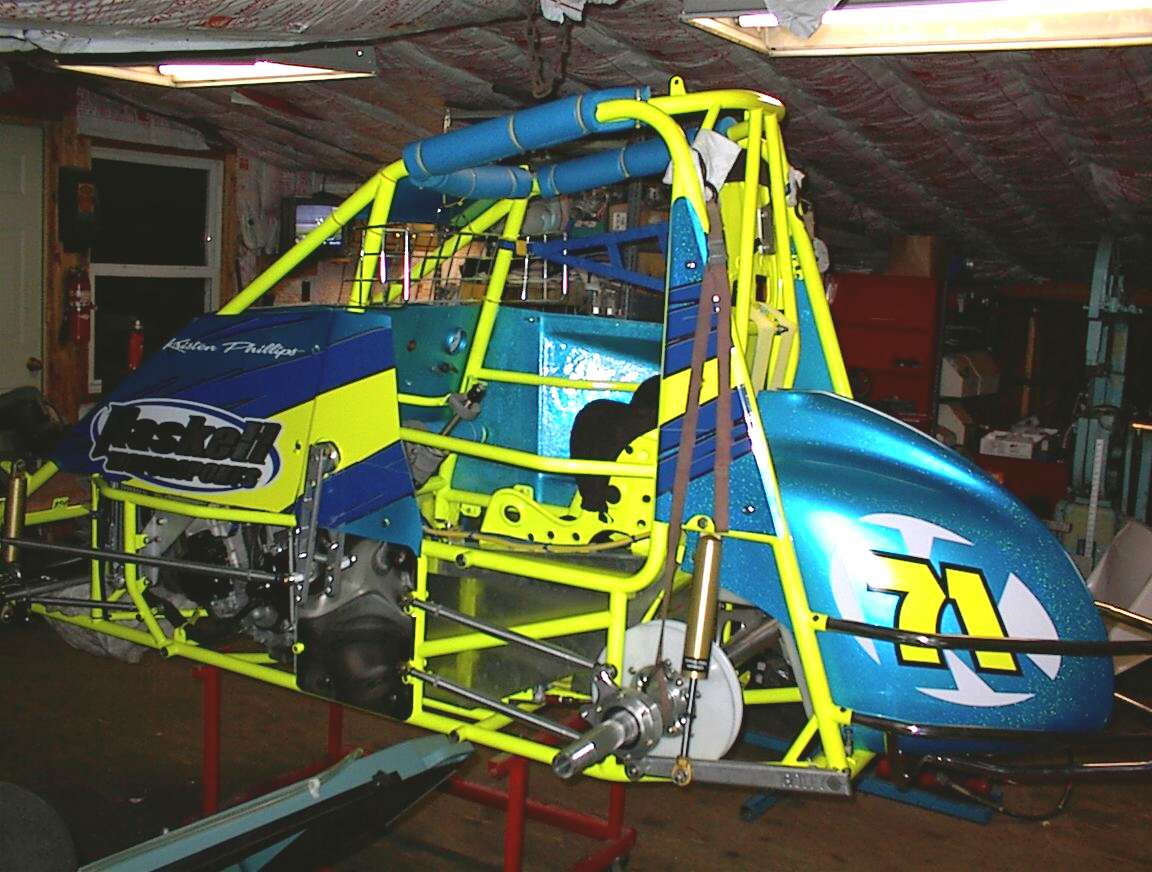

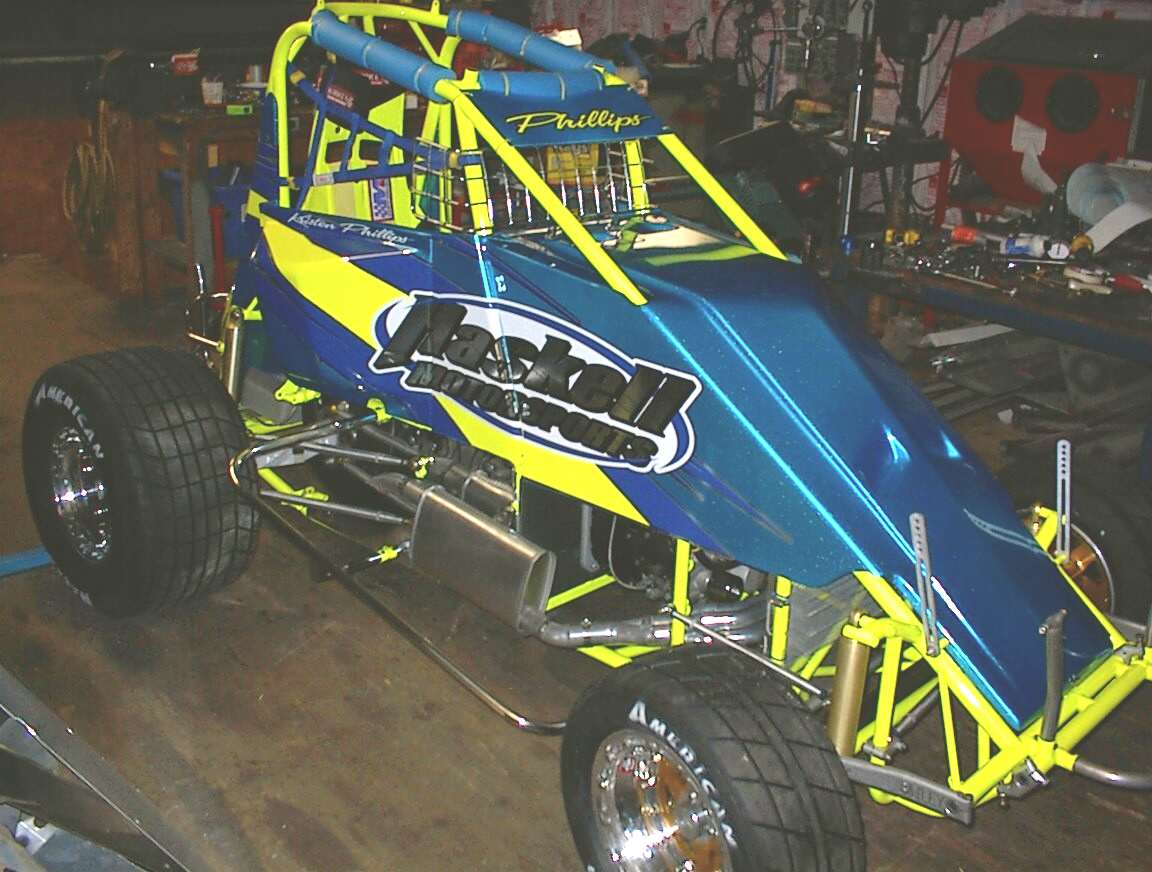

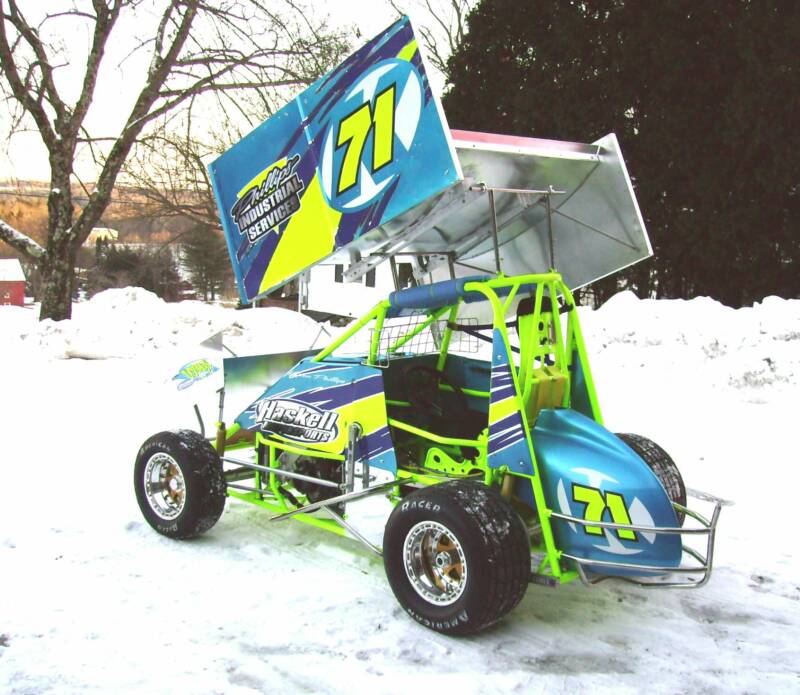

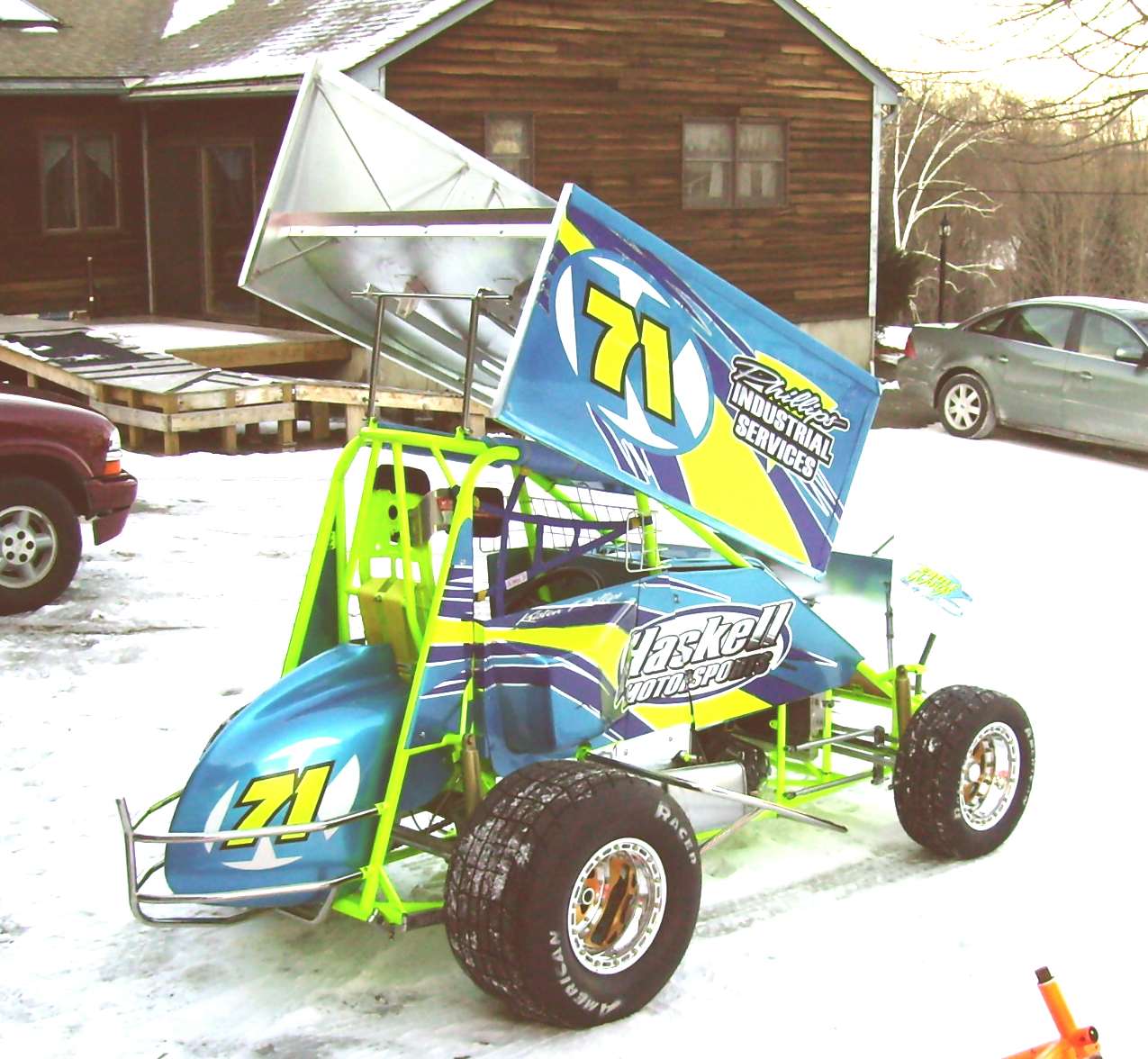

Here are the new graphics installed
New car wins awards at the Frank Maratta show!
Best Oval Track car & Best Paint.
